The Ultimate Low-Voltage Wiring Guide

We often notice the bulbs glowing, cameras recording, or machines running, but rarely do we see the hidden veins powering it all. These wires may be invisible, but they’re essential. They form the backbone of our connected world.

So, in such a world driven by connectivity and automation, low-voltage wiring has emerged as an essential element for modern buildings, smart homes, and commercial infrastructure. Whether you’re setting up smart lighting, security systems, or an advanced AV network, understanding the principles of low-voltage wiring is crucial. Let’s walk you through everything you need to know, from what low-voltage wiring is to how it works, where it’s used, and why it is part of almost every smart setup.

What Is Low-Voltage Wiring?

Low-voltage wiring refers to electrical wiring that carries 50 volts or less of electricity. Common voltage levels include 12V, 24V, and 48V. Unlike traditional high-voltage systems (like your 120V outlets), low-voltage systems are safer, more energy-efficient, and commonly used for things like security cameras, internet connections, lighting control, and other smart home devices.

In essence, low-voltage home wiring enables the communication and functionality of smart technologies while consuming less power and posing fewer safety risks. It serves as the invisible backbone of your smart ecosystem, powering everything from home security systems and lighting automation to internet connectivity and much more.

Which Type of Wiring Is Used?

The type of wire that is used is as important as the right key for a lock. A variety of cables are used in residential low-voltage wiring, depending not only on the application but also on the distance of the run, the environment, and specific data or power requirements. Common types include:

Cat5e and Cat6 Ethernet Cables: Ideal for data and VoIP systems.
Coaxial Cables (RG6): Used for video and television signals.
Fiber Optic Cables: Preferred for long-distance, high-bandwidth communication.
Speaker Wire: Designed for audio systems.
Thermostat Wire: Typically 18/5 for HVAC systems.

How Do You Know Which Wire Is Low Voltage?

It’s all about the voltage rating. Any wire carrying 50 volts or less is considered low voltage. These wires are often marked or color-coded differently from high-voltage ones, making them easier to identify during installation or repair. Color coding varies depending on regional electrical codes, but the common low-voltage wire colors include red, black, white, blue, and green.

Low-voltage wiring basics usually include labels such as 12VDC, 24VAC, or similar, depending on whether the power is direct current (DC) or alternating current (AC). These markings are typically printed on the wire’s outer sheath, providing a quick reference during installation. To ensure accurate identification, it’s best to consult the low-voltage house wiring diagram for your property or have a certified expert check the system if one isn’t available.

Low-voltage wires are thin and flexible, and that’s what makes them ideal for modern tech. Twisted pairs help reduce electromagnetic interference (EMI), which is especially useful for security and AV systems. These cables are designed to be flexible and lightweight, making them ideal for structured cabling in walls, ceilings, and outdoor applications.

Benefits of Low-Voltage Wiring

Why choose low voltage over traditional systems? Here are some compelling reasons:

Safety: Reduced risk of electric shock or fire.
Energy Efficiency: Uses less power, which can lead to lower utility bills.
Cost-Effective: Often cheaper to install and maintain.
Flexibility: Easily integrates with smart home systems and IoT devices.
Scalability: Easy to expand or upgrade as your needs grow.

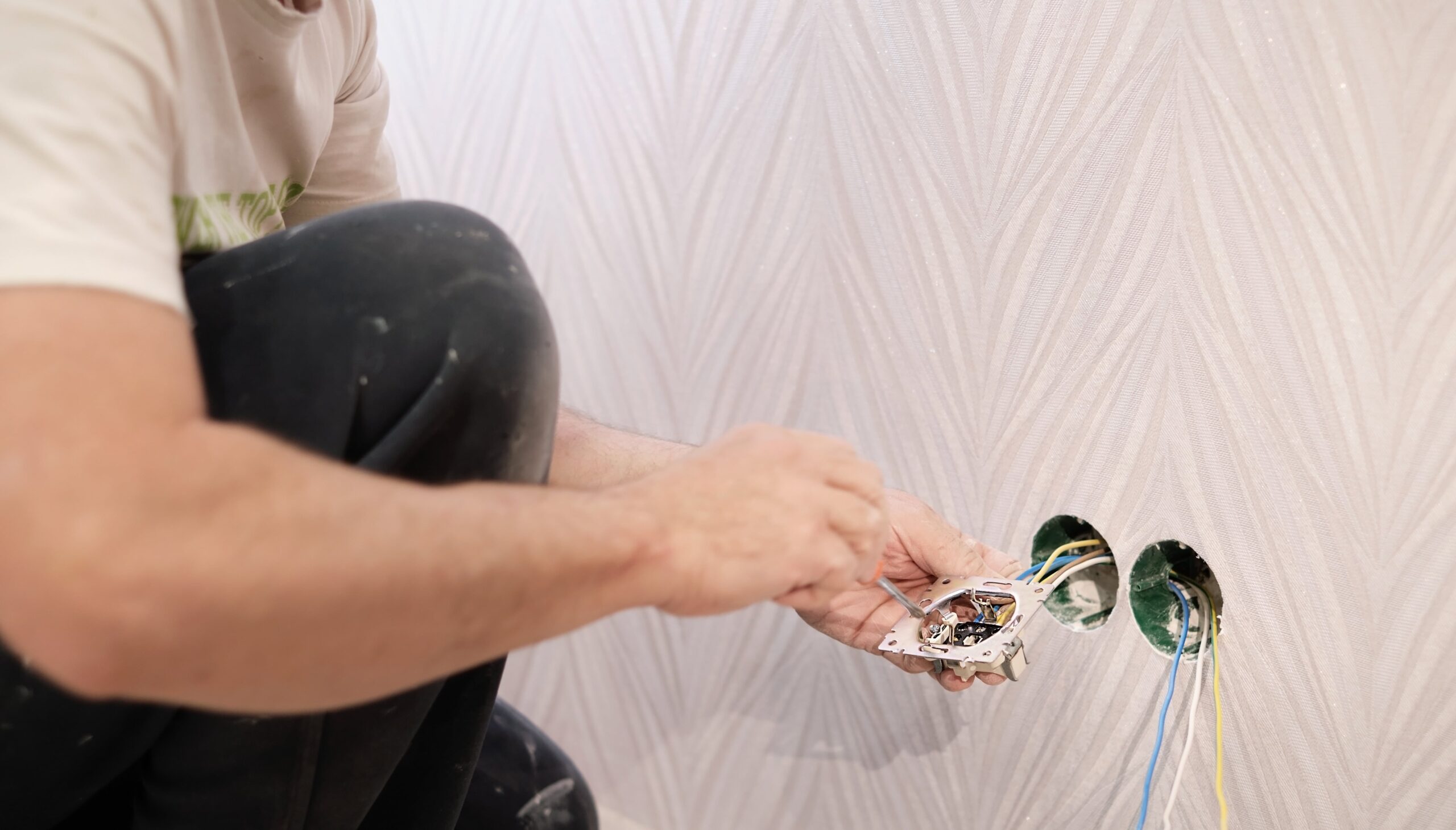

How to Install Low-Voltage Wiring Systems

Installing low-voltage wiring isn’t just plug-and-play. It requires careful planning, the right tools, and adherence to local electrical codes for safety and efficiency. From mapping out cable paths to ensuring proper labeling and termination, each step plays a critical role in the system’s performance. Here are the key steps:

Plan Your System: Identify the devices (e.g., cameras, lights, access control systems) and where each will go.
Choose the Right Cables: Depending on the data, power, and signal type.
Run the Cable: Use cable trays or conduits; avoid running low-voltage wires parallel to high-voltage lines.
Terminate and Label: Ensure all cables are clearly labeled and terminated properly.
Test the System: Use testing tools to confirm connectivity and signal integrity.

What Is Structured Cabling?

Structured cabling is a standardized way of organizing and installing low-voltage home wiring. It typically supports multiple hardware systems, like data, voice, and video, all in a cohesive infrastructure.

Structured cabling systems consist of:

Horizontal cabling
Backbone cabling
Telecommunications rooms
Work area components

This approach provides flexibility, reduces clutter, and makes maintenance easier, especially in large buildings or businesses.

Key Applications of Low-Voltage Wiring

Low-voltage wiring isn’t just for fancy gadgets; it supports other critical systems, including:

Security Systems: Alarms, cameras, access control.
Lighting Controls: Indoor and outdoor systems.
Telecommunication: Internet and phone lines.
Audio/Visual Systems: Speakers, TVs, projectors.
Home Automation: Thermostats, doorbells, sensors.

These systems rely on strong and well-planned low-voltage wiring diagrams to function properly.

Smart Home Integration

With the rise of smart homes, low-voltage home wiring doesn’t seem to be a luxury anymore; it’s a necessity. From smart doorbells and thermostats to home assistants, most of these devices rely on residential low-voltage wiring for connectivity and power.

Energy Efficiency and Sustainability

Eco-conscious builders and homeowners are increasingly turning to low-voltage wiring basics to reduce energy consumption. LED lights powered through low-voltage systems, for instance, offer incredible energy savings without compromising brightness.

According to the U.S. Department of Energy, LED lighting uses at least 75% less energy and lasts 25 times longer than incandescent lighting. Integrating them with low-voltage wiring amplifies those savings.

Compliance and Safety Codes

Even though low-voltage wiring is safer, it still has rules. The National Electrical Code (NEC) outlines how it should be installed. You’ll also need to follow fire safety and signal separation guidelines. Hiring a licensed expert would keep your setup legal, safe, and insurance-friendly.

Fixing Low-Voltage Wiring Issues

Common issues in low-voltage wiring systems include:

Signal loss or interference
Damaged or crushed cables
Poor grounding
Incorrect termination

Upgrade Planning: When and Why

As time passes and technology evolves, older residential low-voltage wiring may not support new devices or bandwidth requirements. Consider an upgrade if:

You’re installing new smart systems.
You experience frequent signal interruptions.
Your current cables aren’t up to industry standards.

Commercial vs. Residential Installations

While both settings use low-voltage wiring, commercial installations often require stronger planning and infrastructure. This includes:

Higher-grade materials are designed for durability and long-term performance
Larger structured cabling systems to support broader networks and high device density
More rigorous compliance with industry-specific regulations and building codes

In contrast, residential low-voltage wiring typically focuses on home automation, entertainment systems, and smart security. That said, the core principles, safety, efficiency, and scalability, apply equally to both sectors. Whether it’s a home or office, following a reliable low voltage wiring guide ensures smoother performance and fewer rewiring headaches down the road.

The Role of Low Voltage in Security

Low-voltage wiring plays a vital role in powering and connecting today’s most essential security infrastructure. This includes:

Surveillance cameras
Motion sensors
Access control systems
Fire alarms
Intrusion detection systems
Video doorbells and intercoms

These systems don’t and can’t just operate in isolation: they communicate, store data, and often send real-time alerts. Many of them run on Power over Ethernet (PoE), which transmits both power and data over a single cable. This makes low-voltage wiring installation cleaner, faster, and more cost-effective, especially in large buildings and properties.

Additionally, low voltage enhances safety in high-risk areas like hospitals, schools, and retail centers, where dependable security is non-negotiable. Since these wires carry less current, they’re safer to install and maintain, reducing risks for both technicians and occupants. As smart security solutions evolve, residential low-voltage wiring becomes even more critical for homes and businesses seeking smooth, undisturbed protection.

Low Voltage Wiring Tools & Supplies

To get started, you’ll need:

Cable pullers
Wire strippers
Labeling tools
Cable testers
Conduits or raceways
Crimping tools

Final Thoughts

Good wiring isn’t usually paid enough attention, but it powers everything you see. This low-voltage wiring guide is your manual for creating safer, smarter, and more efficient homes and businesses. Whether you’re modifying your home, planning new construction, or simply upgrading your security system, understanding low-voltage wiring basics helps you make informed decisions.

FAQs About Low-Voltage Wiring

Can low-voltage wires carry data and power simultaneously?

Yes. Ethernet cables using PoE technology are a great example, powering devices like IP cameras and Wi-Fi access points while also transmitting data.

Where is low-voltage wiring most commonly used?

In applications like internet wiring, phone systems, thermostats, intercoms, and home security systems.

Is low-voltage wiring safe to DIY?

Yes, but basic electrical knowledge is necessary. For large projects or commercial jobs, hiring professionals is highly recommended.

How do I read a low-voltage house wiring diagram?

It shows where wires go and what devices they connect to. Symbols represent switches, outlets, and other components. Learning these symbols is key for planning or troubleshooting.
